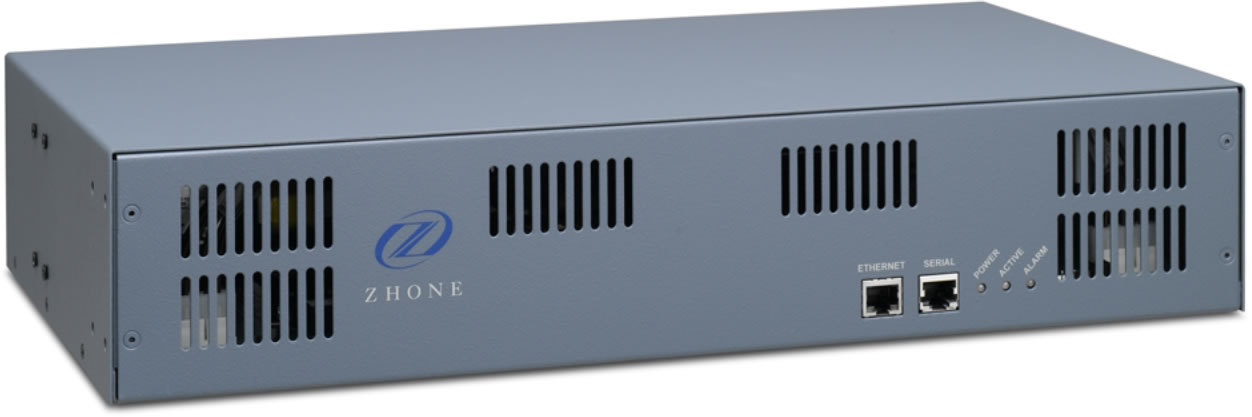

Zhone IMACS 200
TDM Intelligent Channel Bank with Built-in Cross Connect
Compact Integrated Multiple Access Communication Server
Overview
The concept of an integrated one box solution for advanced voice and data applications began with the introduction of the IMACS. The IMACS 200 carries on that tradition with an integrated solution optimized for smaller port size applications that the IMACS could not economically address. An array of the most popular interfaces and features from the IMACS has been bundled into a small 2U chassis providing the ultimate in ease of installation.
Reliable communications are vital to any organization. The IMACS 200 addresses this need while providing compact size, low cost, and a high level of voice and data integration. This makes it an ideal choice for providing a variety of services to small end points and remote locations in any modern telecommunications network.
Optimized for the unique needs of electric utilities, the IMACS 200 system supports a wide range of specialty traffic, including teleprotection (EIA-232 and IEEE C37.94 optical interface to protection relays), SCADA, surveillance video, substation automation and alarms, radio, Ethernet and telephony.
The IMACS 200 system offers a powerful array of integrated network diagnostic and fault isolation capabilities. These include Bit Error Rate Testers, test tone and signaling state generation, digital and analog loop back-support, and remote configuration and control. IMACS 200 meets stringent standards criteria, such as IEEE 1613, RoHS, and CE, which means you can deploy it anywhere in your network.
|
Features
- Two Rack-Unit Design
- -48 Vdc, 125 Vdc, 120/220 Vac powering options
- Redundant Power Supplies (optional)
- Powerful System Maintenance, Diagnostic, and Fault Isolation Capabilities Including LEDs, Loop back, BERT, automatic diagnostics
- External Alarm Monitoring
- Digital Non Blocking Cross Connect
- IEEE 1613 Certified – including temperature hardening
- RoHS Compliant
- IEEE C37.94 Optical interface to protection relays
- Multiple Voice and Data Access Interfaces
- Flexible Electrical and Optical T1/E1 WAN Options
|
|
|
|
Benefits
- Supports Voice, Data, Control, and Monitoring Interfaces in a Single Device
- Low Initial Cost
- Minimal Installation Cost
- Easy Installation in Tight Spaces
- Deployable in Harsh Environments
- Deployable Worldwide
- Simplified Maintenance with same “Look and Feel” as Existing IMACS Platform
- Compatible with existing IMACS OnLine EMS
- Optimized for electrical utility sub-station applications
- Optical interface option offers superior immunity from electrical noise and isolation from foreign voltages / signal ground loops
|
|
|
Dimensions
3.47 in. x 17.31 in. x 9.48 in.
8.8 cm x 44.0 cm x 24.1 cm
Weight
Approximately 10 lbs. (4.54 kg) depending on configuration
Power
-48 Vdc
125 Vdc
120/220 Vac
Optional redundant power supplies
Interfaces
4 - T1/E1
4 - 4 Wire E&M/TO
4 – 2 Wire FXS (600 ohm)
2 – V.35 (n x DS0)
5 – RS-232 (2.4, 4.8, 19.2, 28.8 and 38.4 kbps)
4 – alarm inputs
4 – alarm outputs (dry contacts)
2 – IEEE C37.94 compliant serial data over fiber (optional)
1 – 10BaseT Ethernet
2 – Optical T1/E1 WAN, Single fiber, 8 Mbps (optional)
Standards Support
IEEE 1613
RoHS
AT&T PUB 43801
ITU-T G712
TR62411
Voice Support
4 Wire E&M/TO
2 Wire FXS
|
|
|
|
Protocol Support
Ethernet IEEE 802.3
RFC 1490 – Encapsulation
ARP, RIP and OSPF Bridging and routing
V.35
RS 232
IEEE C37.94
Management
RS-232 Serial VT-100 port
Ethernet Port
Command Line Interface (Menu based)
SNMP V2
Telnet
Regulatory Compliance
Safety:
United States - UL 60950-1
Canada - CSA C2.22 No. 60950-1
European Union - EN 60950-1
International / CB Scheme - IEC 60950-1 3rd Edition
EMC:
United States - FCC Part 15 Class A
Canada - ICES-03
European Union/CE Mark - ETSI EN 300 386:2001 which includes:
EN 55022 Class A
EN 6100-4-2
EN 6100-4-3
EN 6100-4-4
EN 6100-4-5
EN 6100-4-6
EN 6100-3-2 - N/A for DC
EN 6100-3-3 - N/A for DC
Operating Requirements
Temperature –40°C to +70°C
Humidity 95 % max, non-condensing
|
|
|
|
|
